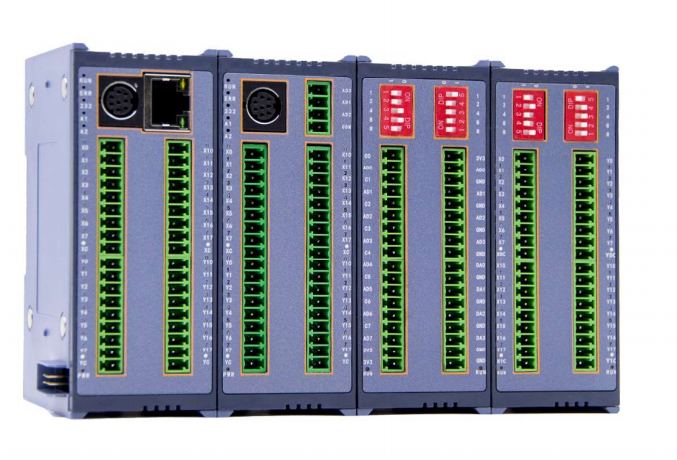

| XSJ-積木式PLC系列產品 | ||||||||||||||||
| 序號 | 規格型號 | 外形尺寸 | 安裝尺寸 | I/O總點數 | 輸入 | 輸出類型 | AD | DA | 高速(含) | 通訊方式 | ||||||
| 裸板 | 裸板 | 導軌底座 | MR | MT | 輸入 | 輸出 | RS232 | RS485 | 以太網 | CAN | ||||||

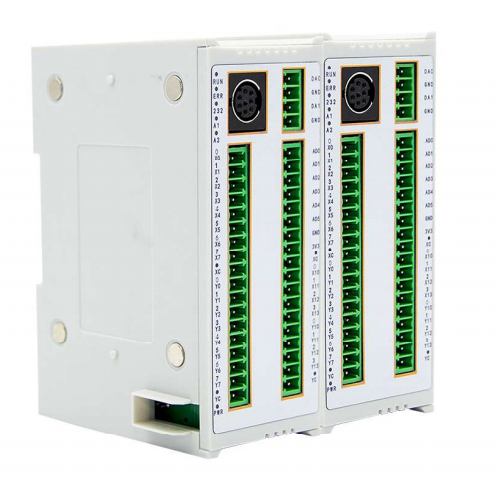

| 1 | XSJ2N-24MT-6A2D | 104*46*72 | - | C45導軌 | 24 | 12 | - | 12 | 6 | 2 | 6 | 4 | 1 | 1 | - | - |
| 2 | XSJ2N-24MR-6A2D | 104*46*72 | - | C45導軌 | 24 | 12 | 12 | - | 6 | 2 | 6 | 4 | 1 | 1 | - | - |
| 3 | XSJ2N-24MRT-6A2D | 104*46*72 | - | C45導軌 | 24 | 12 | 6 | 6 | 6 | 2 | 6 | 4 | 1 | 1 | - | - |

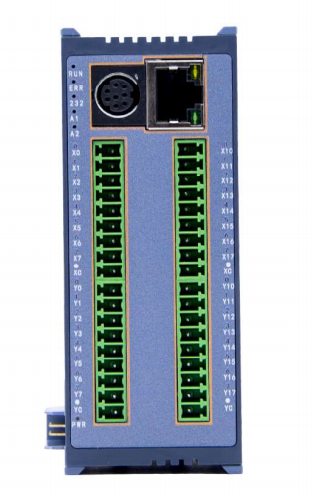

| 4 | XSJ3U-32MT-ENET | 104*46*72 | - | C45導軌 | 32 | 16 | - | 16 | - | - | 6 | 8 | √ | 2 | 1 | 1 |
| 5 | XSJ3U-32MT-3AD | 104*46*72 | - | C45導軌 | 32 | 16 | - | 16 | 3 | - | 6 | 8 | √ | 2 | - | 1 |
| 6 | XSJ3U-32MRT-ENET | 104*46*72 | - | C45導軌 | 32 | 16 | 8 | 8 | - | - | 6 | 8 | √ | 2 | 1 | 1 |
| 7 | XSJ3U-32MRT-3AD | 104*46*72 | - | C45導軌 | 32 | 16 | 8 | 8 | 3 | - | 6 | 8 | √ | 2 | - | 1 |
| 8 | XSJ3U-CAN-16X | 104*46*72 | - | C45導軌 | 16 | 16 | - | - | - | - | - | - | - | - | - | 1 |
| 9 | XSJ3U-CAN-16MT | 104*46*72 | - | C45導軌 | 16 | - | - | 16 | - | - | - | - | - | - | - | 1 |
| 10 | XSJ3U-CAN-16MR | 104*46*72 | - | C45導軌 | 16 | - | 16 | - | - | - | - | - | - | - | - | 1 |
| 11 | XSJ3U-CAN-16MRT | 104*46*72 | - | C45導軌 | 16 | - | 8 | 8 | - | - | - | - | - | - | - | 1 |
| 12 | XSJ3U-CAN-32MT | 104*46*72 | - | C45導軌 | 32 | 16 | - | 16 | - | - | - | - | - | - | - | 1 |
| 13 | XSJ3U-CAN-32MR | 104*46*72 | - | C45導軌 | 32 | 16 | 16 | - | - | - | - | - | - | - | - | 1 |
| 14 | XSJ3U-CAN-32MRT | 104*46*72 | - | C45導軌 | 32 | 16 | 8 | 8 | - | - | - | - | - | - | - | 1 |

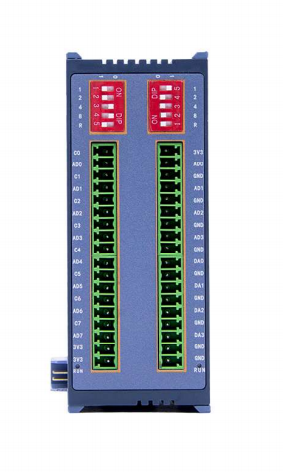

| 15 | XSJ3U-CAN-8AD-I | 104*46*72 | - | C45導軌 | 8路0-20ma模擬量輸入 | |||||||||||
| 16 | XSJ3U-CAN-8AD-V | 104*46*72 | - | C45導軌 | 8路0-10V模擬量輸入 | |||||||||||
| 17 | XSJ3U-CAN-4A4D-I | 104*46*72 | - | C45導軌 | 4路0-20ma模擬量輸入,4路0-20ma模擬量輸出 | |||||||||||
| 18 | XSJ3U-CAN-4A4D-V | 104*46*72 | - | C45導軌 | 4路0-10V模擬量輸入,4路0-10V模擬量輸出 | |||||||||||
| 19 | XSJ3U-CAN-12A4D-I | 104*46*72 | - | C45導軌 | 12路0-20ma模擬量輸入,4路0-20ma模擬量輸出 | |||||||||||
| 20 | XSJ3U-CAN-12A4D-V | 104*46*72 | - | C45導軌 | 12路0-10V模擬量輸入,4路0-10V模擬量輸出 | |||||||||||
| 21 | XSJ3U-CAN-6TC | 104*46*72 | - | C45導軌 | 6路K型熱電偶輸入 | |||||||||||
| 22 | XSJ3U-CAN-6PT | 104*46*72 | - | C45導軌 | 6路PT100鉑電阻輸入 | |||||||||||
| 其他模塊 | ||||||||||||||||
| 23 | XSJ3U-MAIN核心板 | 56*36*6 | 插針式 | 49 | 25 | 24 | 10 | 2 | 6 | 8 | 1 | 2 | - | 1 | ||
| 24 | XSJ3U-MAIN-ENRT核心板 | 56*36*6 | 插針式 | 45 | 21 | 24 | 10 | 1 | 6 | 8 | 1 | 2 | 1 | 1 | ||
| 25 | R8-TZ10 4G邊緣計算網關 模組核心板 | 47*43 | 插針式 | PLC遠程數據采集、云平臺組態監控、邊緣計算二次開發、梯形圖遠程上下載等，DC5V供電 | ||||||||||||
| 26 | R8-TZ20 4G智能采集模塊 | 104*46*72 | - | C45導軌 | PLC遠程數據采集、云平臺組態監控、梯形圖遠程上下載等，DC24V供電 | |||||||||||
| 27 | R8-TZ30 LORA通訊模塊 | 104*46*72 | - | C45導軌 | 3公里范圍內PLC數據采集、監控、控制、數據傳輸、設備組網聯動等，DC24V供電 | |||||||||||
| 28 | R83U-485-8TC | 72*87 | 65*80 | 75*90 | 8路K型熱電偶模塊，RS485通訊，超調量精度0.1% | |||||||||||
